Heat Pumps

Heat pumps deliver efficient year-round heating and cooling by using advanced inverter technology and controlled refrigerant flow. They provide reliable comfort while reducing energy consumption compared to traditional HVAC systems.

QUOTE

Get a Quote

Tell us about your project and leave your contact details below. We’ll be in touch shortly.

SYSTEM RATINGS

Cooling EfficiencyHeating Efficiency
SEER2 – 21.0HSPF2-4 – 11.0
EER2 12.0COP2 – 4.10

OUTDOOR UNIT DATA

Compressor Type Rotory, Variable
RefrigerantR32
Factory Charge (kg)2.6
Refrigerant OilRB68GX
Outdoor Air Flow (Max) (CFM)2650
Outdoor Noise Level (dBA)57

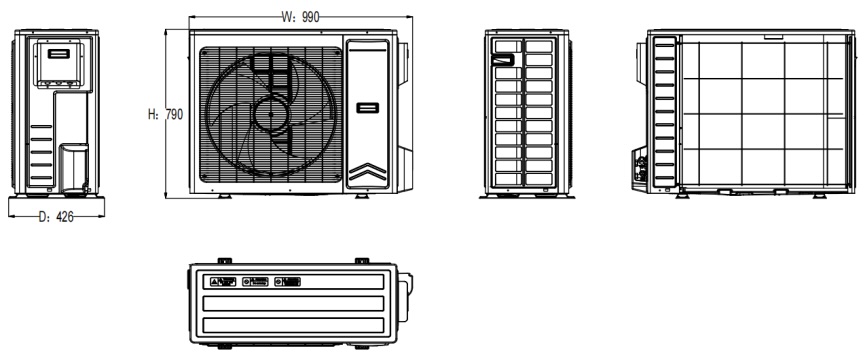

Dimension (W×D×H) mm990×426×790
Package (W×D×H) mm1057×482×855
Net/Gross Weight (kg )60/65

ELECTRICAL

SpecsODUIDU
Power Supply208/230-1-60115/208/230-1-60
Connection Wiring12AWG16AWG
Compressor RLA12.13/
Fan Motor RLA1.82.87/5.35(230V/115V)
Fan Motor W180354/409
Rated Power Input @ Cooling (W)2650354/409
Rated Power Input @ Heating (W)2400354/409
Recommended breaker size (A)2515
